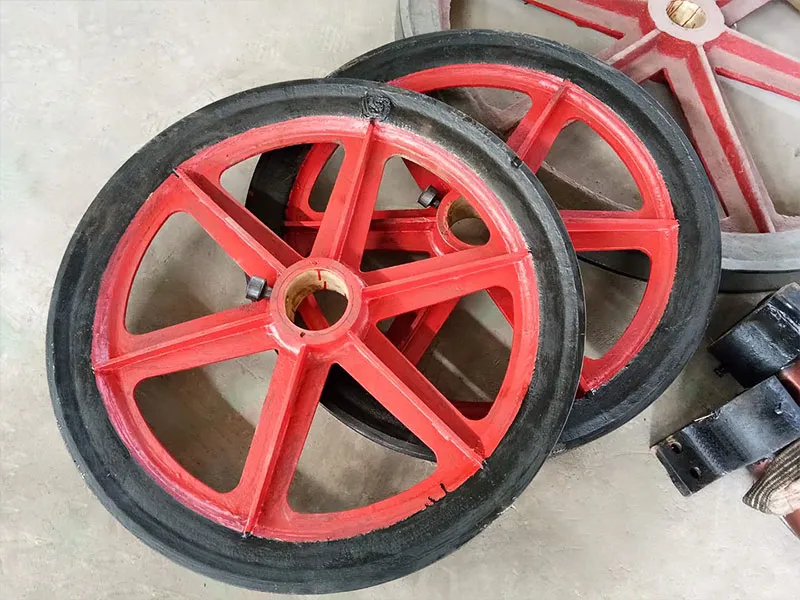

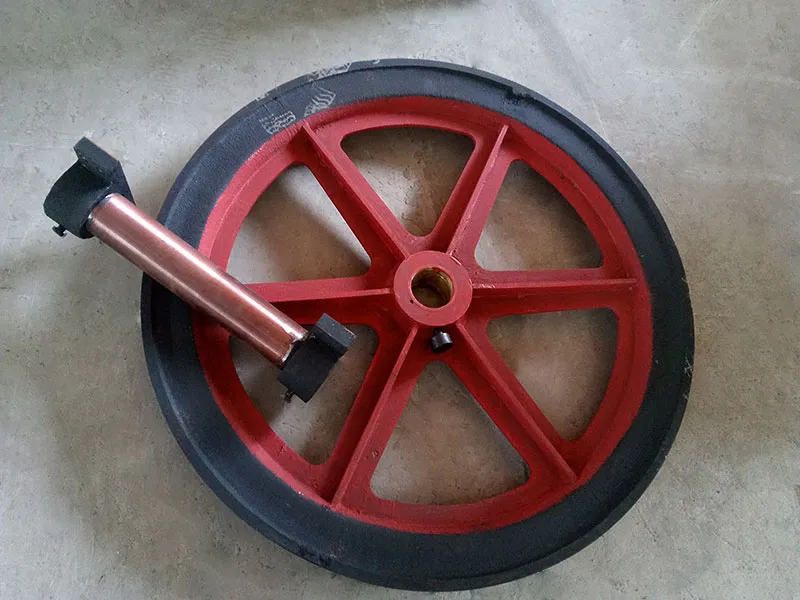

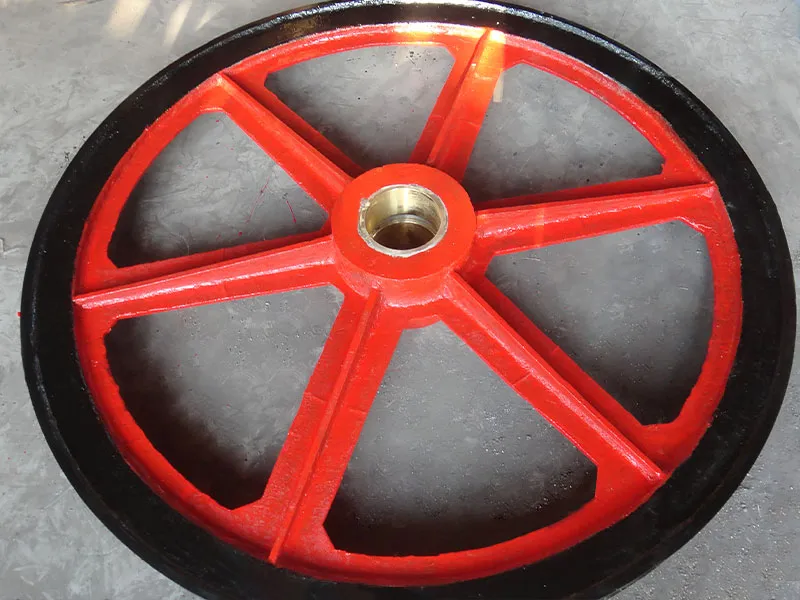

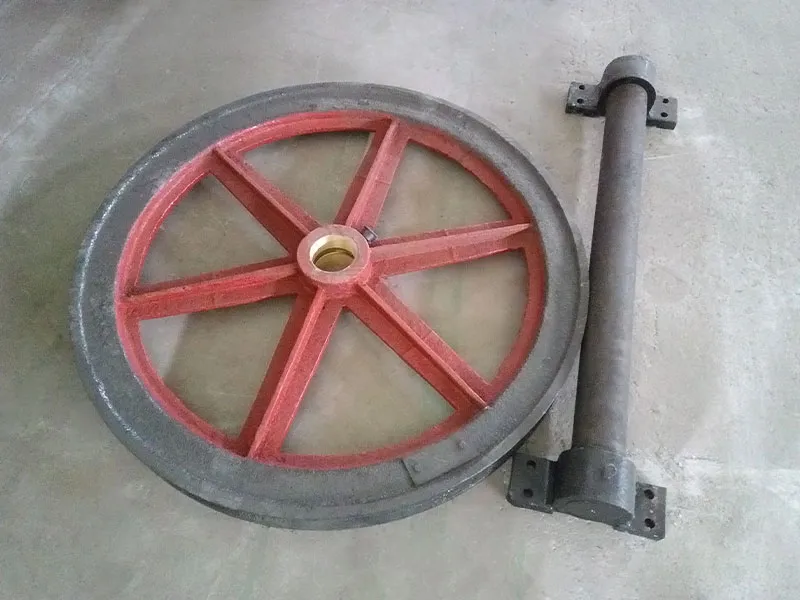

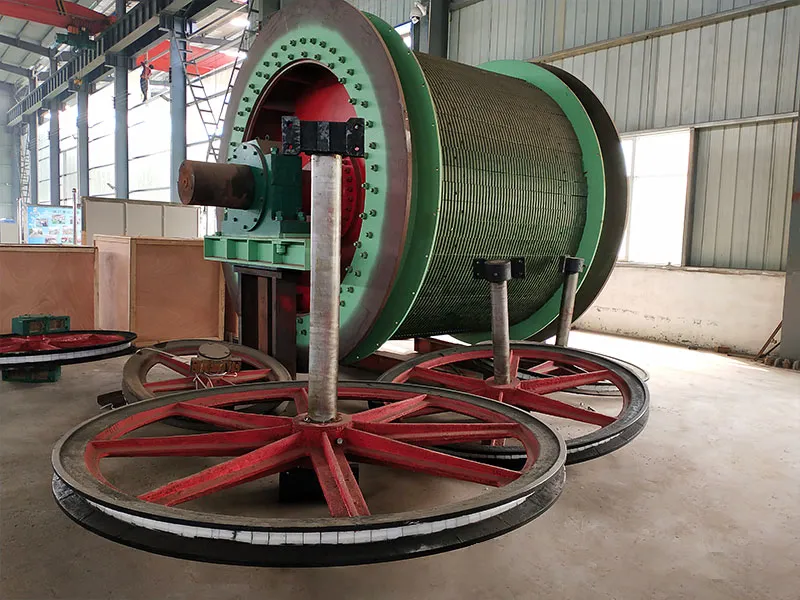

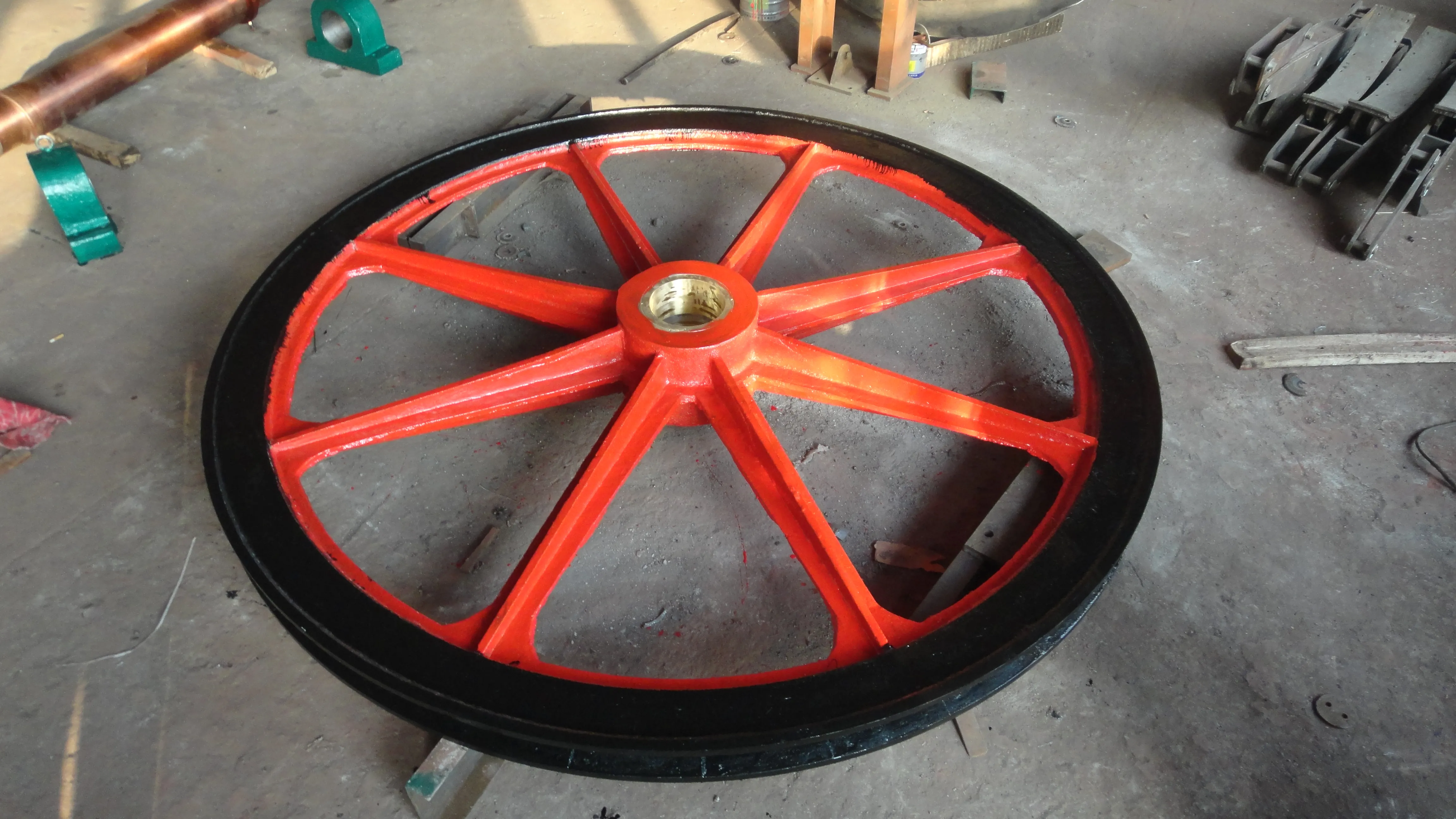

Product: Moving Head Sheave

Introduce

The moving head sheave is mainly used to support the direction of the wire rope between the winch and the lifting container when lifting coal mine shafts and inclined shafts. The sheave is installed on the derrick as a support to support and drag the hoist reel between the lifting containers to guide the steering of the wire rope when the mine is hoisted. The rope groove is equipped with plastic lining or rubber block to increase the service life of the wire rope.

Operational principle

1. The wheel body of the shaft shaft wheel and the shaft sinking wheel body only performs rotational motion.
2. The vertical shaft sheave is mainly used for vertical shaft lifting and inclined shaft skip lifting.
3. The shaft drilling sheave is used to suspend the hanging plate and stabilize the rope when drilling the vertical shaft.
4. In addition to rotating, the wheel body of the moving wheel can also move axially.

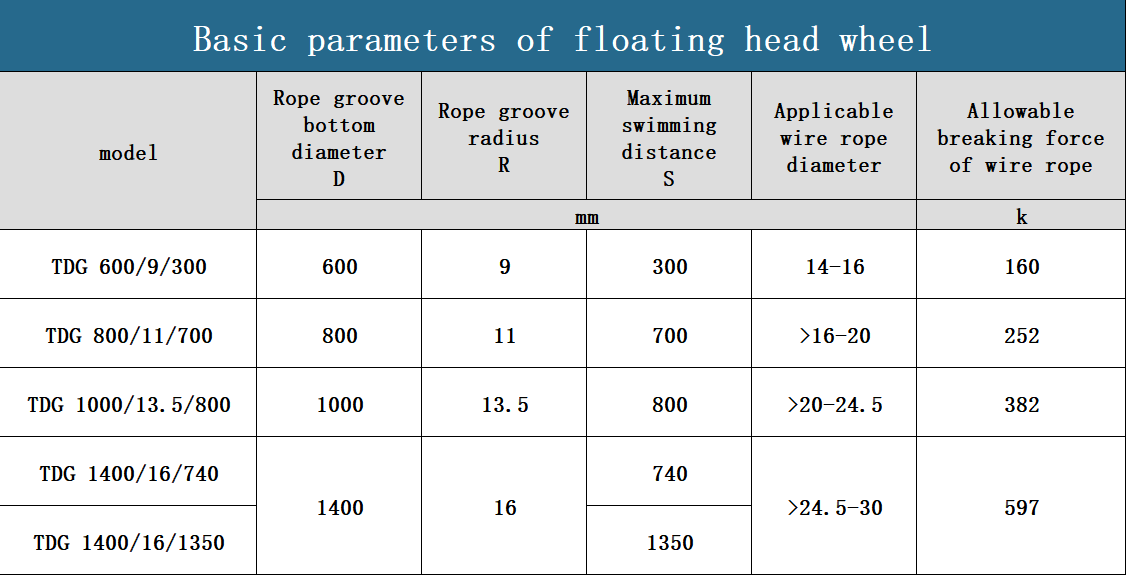

This data is for reference only and can be customized
